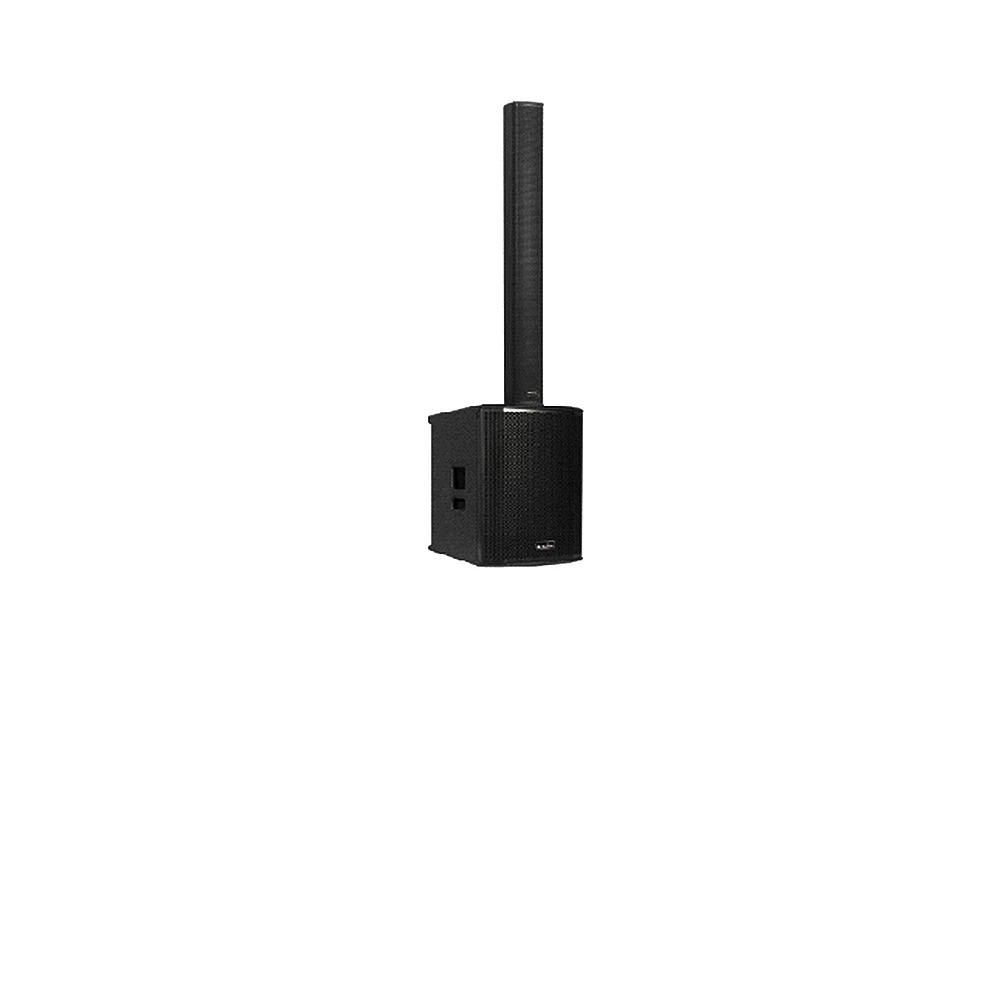

Multifunctional Hall Speaker Set
KM-DSP1284
Category: Boardroom

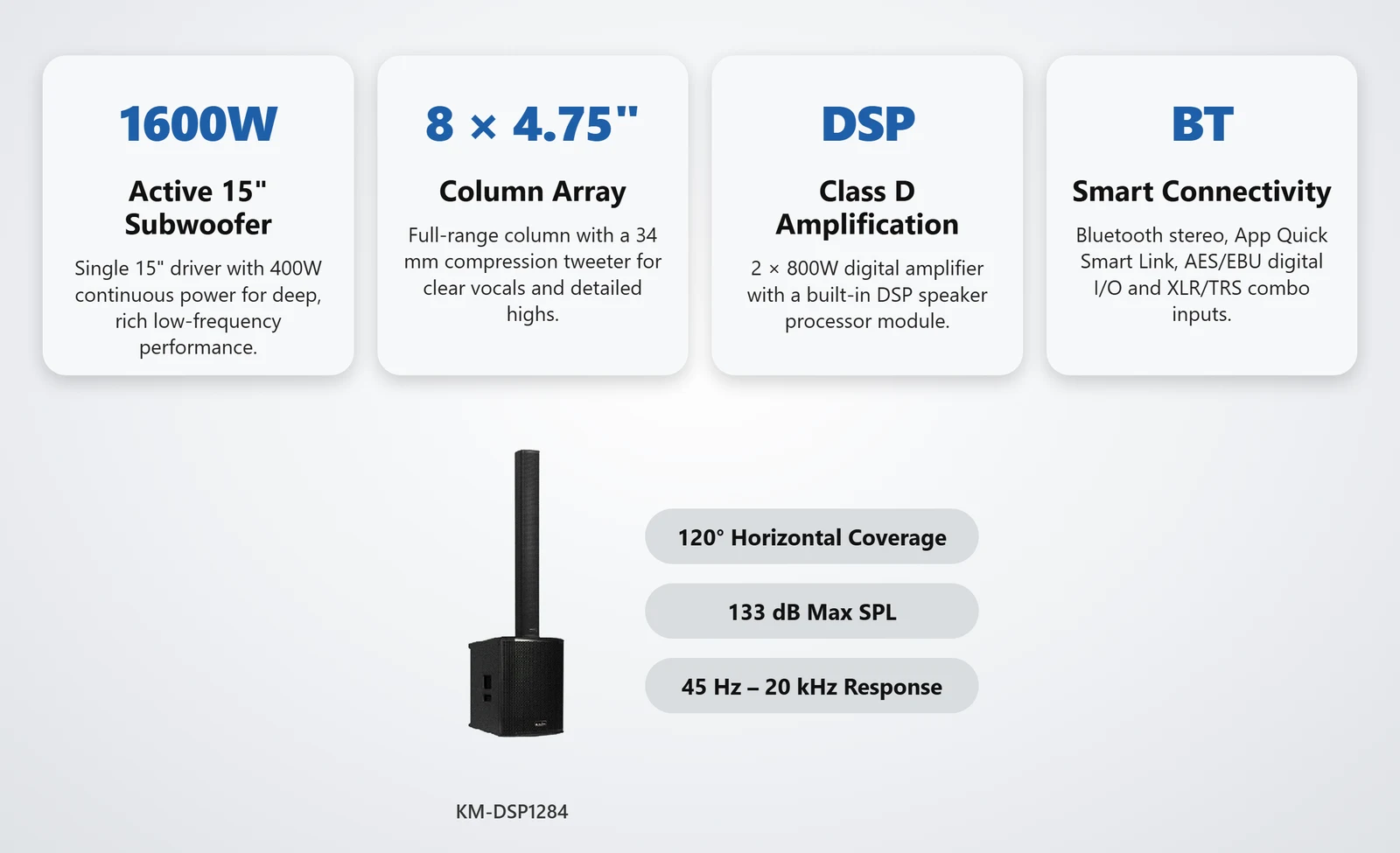

The KM-DSP1284 Multifunctional Hall Speaker Set is a professional audio solution designed to deliver powerful, clear, and immersive sound across a wide range of indoor environments. Combining a full-range column speaker system with an active subwoofer and intelligent digital amplification, it provides a balanced audio experience with strong vocal clarity, detailed high frequencies, and rich low-frequency performance. Built for professional applications, the system is well suited for multifunctional halls, conference spaces, auditoriums, corporate events, presentations, seminars, public gatherings, and other environments where consistent and high-quality sound is essential.
More
| Feature | Description |
|---|---|
| Model | KM-DSP1284 |
| System | Column Full-Range Speaker |
| Tweeter | 1 x 34 mm Voice Coil Compression Unit |
| Woofer (Column) | 8 x 4.75" (25 mm Voice Coil) Driver Units |
| Power (Column) | 350W (RMS) 1200W (Peak) |
| Nominal Impedance (Column) | 16Ω |
| Sensitivity (Column) | 95dB/1W/1m |
| Maximum Sound Pressure Level | 133dB (At 1m) |
| Coverage Angle | Horizontal 120° Vertical 2° |
| System Type | Single 15" Active Subwoofer |
| Woofer (Subwoofer) | 1 x 15" Driver Unit |
| Frequency Response | 45Hz - 20kHz (±3dB) |
| Rated Power (Subwoofer) | 400W (Continuous) 1600W (Peak) |
| Sensitivity (Subwoofer) | 98dB (1W/1m) |
| Sound Pressure Level (Subwoofer) | 130dB (At 1m) |
| Nominal Impedance (Subwoofer) | 8Ω |
| Amplifier Type | Class D Digital Amplifier |
| Processing Method | Built-In DSP Speaker Processor Module |
| Rated Power (Amplifier) | 2 x 800W (8Ω) 2 x 1600W (4Ω) |
| Other | XLR/TRS Combo Inputs x 2 Stereo XLR/RCA Input x 1 AES/EBU Digital I/O App Quick Smart Link Bluetooth Stereo Powercon® Connector |
| Overall Dimensions (H x W x D) | 1912 x 343 x 412 mm |
| Net Weight | Approximately 27.5 Kg |
