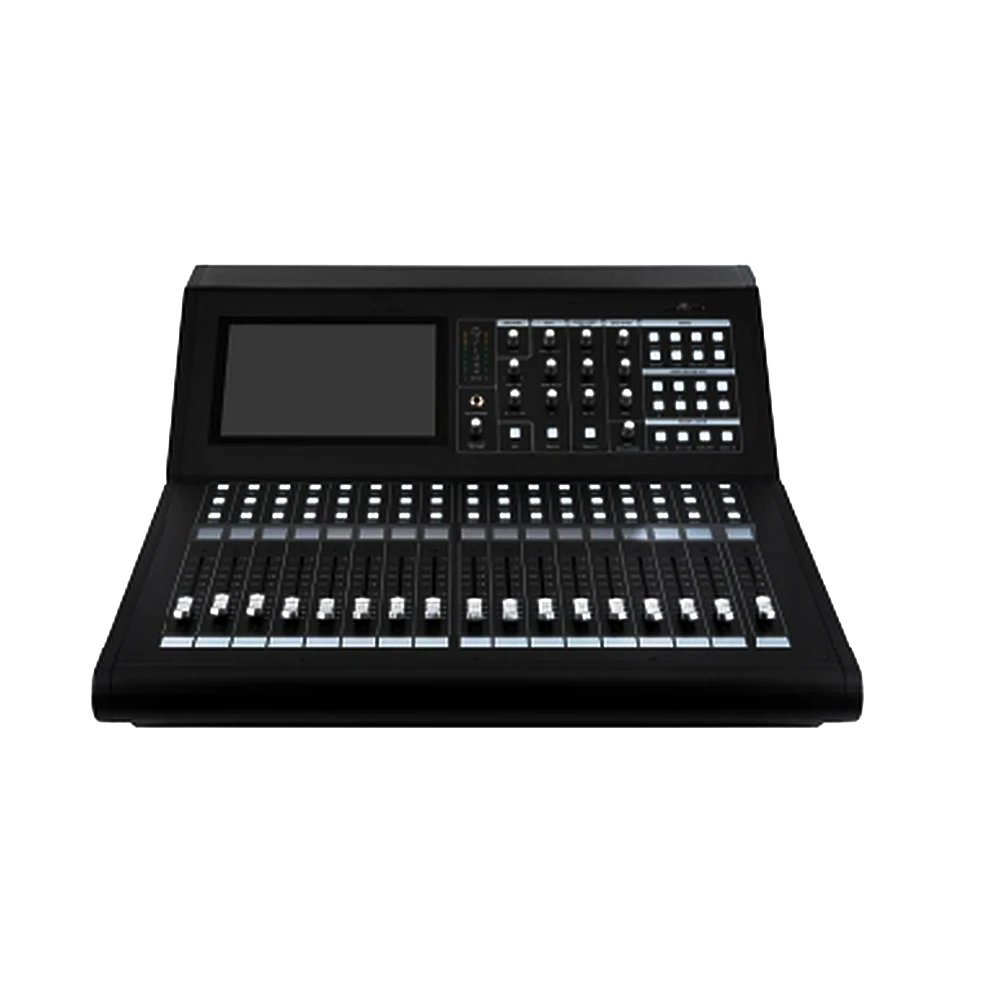

24-Channel Digital Mixer
KM-DM2416
Category: Boardroom
Command your entire sound system from one intelligent touchscreen. This 24-channel digital mixer combines powerful processing with an intuitive, fast interface - so you can bring up the mixing view and make adjustments the moment you need to. Built-in feedback suppression, flexible EQ, and USB recording and playback keep your workflow smooth, while full iPad control lets you mix from anywhere in the room with real-time sync. Save and recall scene presets, and lock the panel to prevent accidental changes - all in a rugged, professional console built for churches, auditoriums, live events, and broadcast environments where reliability and sound quality can't be compromised.
More
| Feature | Description |
|---|---|
| Model | KM-DM2416 |
| Input | 24CH (16 Mic Inputs with HPF at 100 Hz, 12 dB/Octave) |

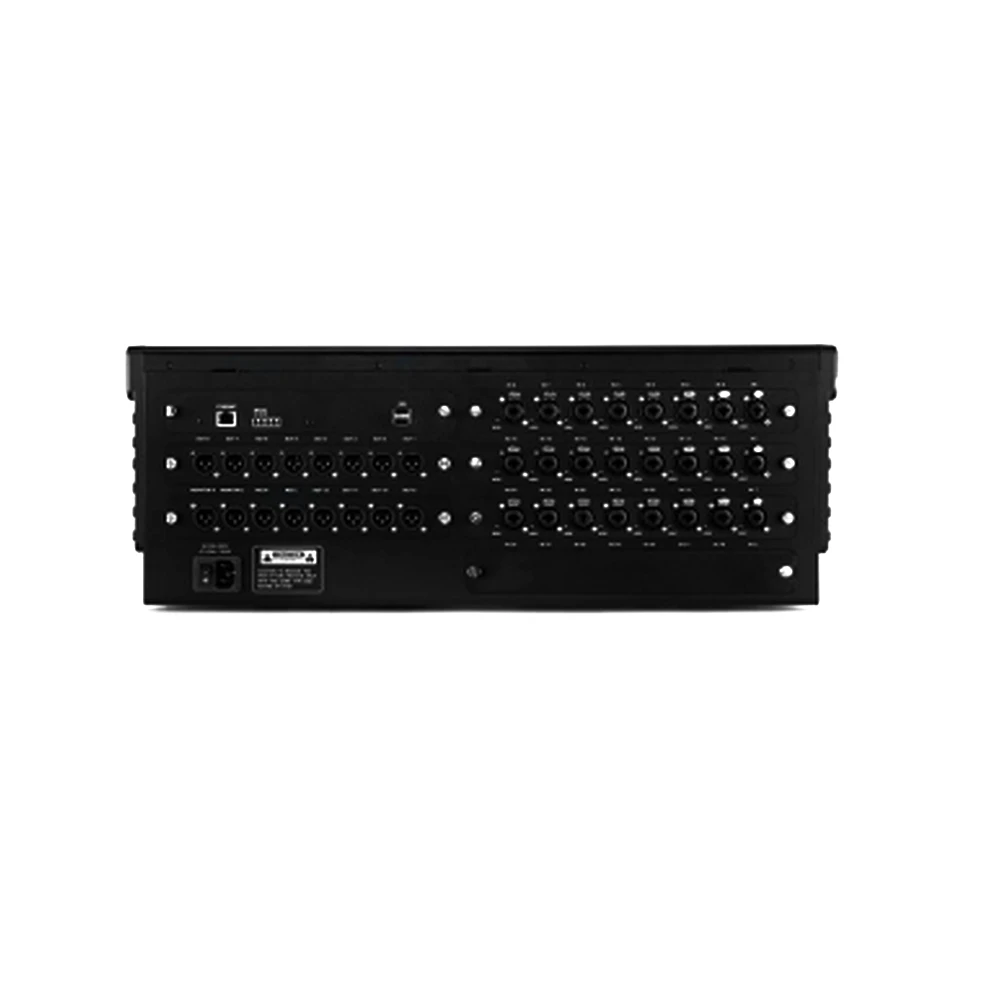

| Analog Output | L/R + 10 BUS + Headphone (L/R) |
| AUX | 6 AUX Sends + 2 FX Sends |
| DAC | PCM4104 |
| Background Noise | -89dBu Unweighted AES17 (20kHz) |
| THD+N | Within ±0.005% |
| Distortion | 0.005% @4dBu 20Hz - 20kHz |
| Equivalent Input Noise | -128 dBu |
| Residual Output Noise | -92 dBu |
| Maximum Input Level | Balanced 20dBu |
| Maximum Output Level | Balanced 20dBu |
| Frequency Response | 20Hz - 20kHz ±0.3dB |
| Matrix | 1 Matrix Output |
| Crosstalk | -74 dB @ 1kHz |
| Touch | Resistive |
| Main Control CPU | Samsung 4418 Quad-core Cortex™-A9 |
| Boot Speed | 36 Seconds |
| Operating System | Linux |
| DSP | ADSP-21489 400MHz |
| USB | Recording & Playback (Playback Formats: APE, FLAC, MP3, WAV) |
| DCA | Yes |
| Chinese and English Interface | Yes |
| Electric Clipper | 17 |
| iPad Control | Yes |
| Effects | 2 Effects Bus (6 Preset Effects Parameters, 24 User-Stored Parameters) 48V Phantom Power per Channel |
| Feedback Suppressor | 16 Independent |
| Line Inputs | 16 Mono + 4 Stereo Line Inputs, 16 Channel Inserts and 1 Stereo Return |
| RS-232 Protocol | Yes |
| USB Mouse | Supports Wired USB Mouse |
| Power Supply | AC 100V-240V, 50/60Hz, 155W |
| Dimensions (W x D x H) | 610 x 650 x 230 mm |
| Net Weight | 22.1 Kg |
